Markup - Text

Markup label properties

Text Toolbar

Classic text toolbar: Choose the desired font and text size. Select required attributes, like bold, italic or underline.

Changes are applied to selected text or active word.
Click the Text Color picker, then choose the desired color from the panel. This option is for highlighting individual characters.
Selection of units is in this toolbar too. This unit is shared by both labels. Additional scale factor for 3D unit is visible when 3D unit is selected.

Text

Text of label. Following macros are supported:

${length}	Distance between two points
${length.x}	x component of length
${length.y}	y component of length
${length.z}	z component of length
${length.xy}	Distance between two points on the xy plane.
${length.xz}	similar to .xy
${length.yz}	similar to .xy
${point0}	Coordinate of first point
${point1}	Coordinate of second point
${radius}	radius
${angle}	angle between lines
${unit}	current display unit

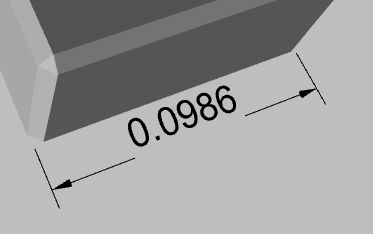

Modificators can be be added after main macro text:
.n	Number of digits after comma.

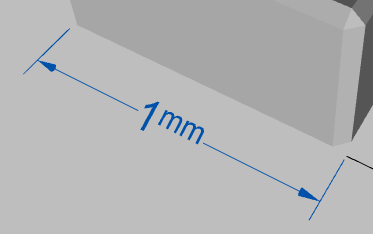

μm (micro), nm, mm, cm, m, km, in, ft, yd, mi	Force to use specific unit of measure. Default units are defined in File Information panel.

All linear dimensions are displayed using scene and display units. See in File Information panel.
Use | character with rectangular shape in order to create vertical lines in rectange.

Shape

Shape and color of background geometry. For instance, it may be rectangle, circle or something else.

Symbol
